Red Light Therapy Wavelengths for Horses, Dogs & Cats: Complete Penetration Depth Guide

A practical, anatomically-grounded guide to choosing red light therapy wavelengths for horses, dogs, and cats — with real penetration depths in millimeters and dose calculations.

Most articles about red light therapy wavelengths handle the topic at a fluffy consumer level: "red light is for skin, near-infrared is for deeper tissue." That description is roughly correct but useless when you're trying to decide whether the device you're considering will actually reach your horse's hock joint or your senior Labrador's hip. The honest, technical reality is more specific—and once you understand the actual numbers, choosing the right wavelength becomes straightforward.

This guide approaches wavelength selection the way a sport-horse veterinarian or canine rehabilitation specialist would: starting with the anatomical depth of the target tissue, working backward to determine the wavelength required to reach it, then verifying that device specifications can actually deliver therapeutic dose at that depth. Below you'll find real penetration data in millimeters, the body-part-specific wavelength matrix that matters most for veterinary applications, fur and coat impacts on effective dose, and the simple formula linking wavelength + power + time to clinical outcome.

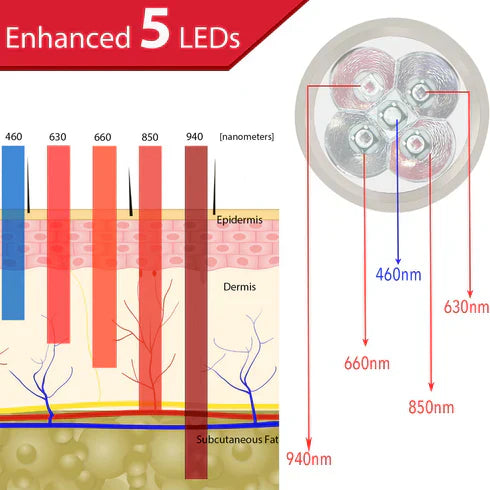

The Real Physics: How Far Light Actually Penetrates

The distance light penetrates into biological tissue is governed by absorption (different molecules absorb light at different wavelengths) and scattering (light bounces off tissue components and disperses). Both effects depend strongly on wavelength. The result is a measurable, predictable relationship between the color of light and how deep it reaches.

The chart below summarizes peer-reviewed penetration data, expressed as the depth at which approximately 1% of incident light intensity remains—a common benchmark for therapeutic effectiveness threshold.

Wavelength	Light Type	Penetration Depth (1% threshold)	Practical Therapeutic Range
415 nm (blue)	Visible blue	1-2 mm	Surface skin only
525 nm (green)	Visible green	2-4 mm	Very superficial only
630 nm	Visible red	4-6 mm	Skin, surface wounds
660 nm	Visible deep red	6-10 mm	Skin, coronary band, fur-thin tendons
700-780 nm	Far red / NIR transition	10-20 mm	Therapeutic transition zone
810 nm	Near-infrared	25-35 mm	Hocks, elbow joints, mid-depth tissue
830 nm	Near-infrared	30-40 mm	Most veterinary deep applications
850 nm	Near-infrared	30-45 mm	Hip joints, deep muscles, large breeds
1064 nm	Far near-infrared	40-60 mm	Very deep tissue (Class IV laser only)

A few patterns are worth noticing. First, penetration increases sharply through the visible spectrum into near-infrared, then increases more gradually past 850 nm. Second, the practical "deep tissue" range starts at 810 nm and plateaus around 850-940 nm—pushing past 1000 nm offers diminishing returns and requires laser-level power output that home devices cannot deliver safely. Third, the gap between red and near-infrared is the most important practical distinction: a 660 nm device cannot do what an 850 nm device does, regardless of how much you pay for it.

Animal-Specific Anatomy: Why Wavelength Choice Matters More Than for Humans

Most consumer red light therapy content discusses wavelength in human contexts—skin treatments, muscle recovery, anti-aging. Veterinary applications differ in two important ways that change the math.

Animals have larger absolute body sizes for many target tissues. A horse's hock joint capsule sits at 20-25 mm depth from the skin surface. A large dog's hip joint sits at 35-45 mm depth. These are deeper than equivalent human anatomical targets, which means wavelength choice matters more. A device that adequately treats human knee pain at 660 nm may completely fail at horse hock arthritis—not because the therapy doesn't work, but because the wavelength can't reach the target.

Animals have variable fur coverage that absorbs light. Human treatments occur on bare skin. Animal treatments occur through fur of varying thickness, density, and color. A horse with a full winter coat may have 30-40% effective dose reduction compared to the same horse summer-clipped. This is invisible to most owners but can be the difference between a therapy session producing measurable improvement and producing nothing.

The combination means that wavelength selection for animal therapy is meaningfully different from human consumer applications, and standard human-market device specifications often don't translate cleanly to veterinary use.

Equine Wavelength Map: Body Part by Body Part

The following chart maps the most common equine treatment applications to the anatomical depth involved and the wavelength required to reach that depth effectively.

Body Part / Application	Target Depth	Required Wavelength	Recommended Session
Coronary band / hoof horn	3-6 mm	630-660 nm	5-8 min
Surface wounds (skin lacerations)	2-5 mm	630-660 nm	5-8 min
Suspensory ligament (mid-region)	10-20 mm	810-830 nm preferred	10-15 min
Superficial digital flexor tendon	8-15 mm	660 nm + 810 nm dual	10-12 min
Deep digital flexor tendon	15-25 mm	810-850 nm required	12-15 min
Fetlock joint capsule	15-25 mm	810-850 nm required	12-15 min
Hock joint capsule	20-25 mm	810-850 nm required	12-15 min
Stifle joint capsule	25-35 mm	830-850 nm required	15-20 min
Hip joint capsule	40-60 mm	850 nm + adequate power	15-20 min
Sacroiliac region	25-40 mm	830-850 nm required	15-20 min
Thoracic / lumbar back muscles	20-40 mm	810-850 nm required	15-20 min per region
Gluteal / hindquarter muscles	30-50 mm	850 nm preferred	15-20 min
Neck muscles (cervical region)	20-35 mm	830-850 nm required	12-15 min

The pattern emerging from the equine map: only the most superficial applications can be treated with red light alone. Coronary band care, surface wounds, and very superficial skin issues respond to 630-660 nm. Everything deeper—which is most of what owners actually want to treat—requires near-infrared at 810-850 nm to reach the target tissue. This is why dual-wavelength devices have become the standard for serious equine therapy: a single session covers both depth ranges, while red-only devices handle only the smallest subset of clinical targets.

Canine Wavelength Map: Sized for Small to Giant Breeds

Dog therapy adds an additional variable: dramatic size differences between breeds change the anatomical depth of equivalent body parts. A Yorkshire Terrier's hip joint sits at perhaps 12-18 mm depth, while a Great Dane's hip joint sits at 50-60 mm depth. The same red light wavelength may work for one and completely fail for the other.

Body Part	Small Breed (under 25 lbs)	Medium Breed (25-60 lbs)	Large Breed (60+ lbs)
Hip joint depth	12-18 mm	20-30 mm	35-50 mm
Elbow joint depth	8-12 mm	12-18 mm	18-25 mm
Stifle (knee) depth	10-15 mm	15-22 mm	22-30 mm
Spine (lumbar) depth	10-20 mm	20-30 mm	30-45 mm
Shoulder (glenohumeral)	8-15 mm	15-25 mm	25-40 mm
Recommended wavelength	660 nm + 810 nm dual	810-830 nm primary	830-850 nm required

For small breed dogs, the depth requirements are forgiving—660 nm red light combined with 810 nm near-infrared reaches most targets adequately. For medium breeds (Beagles, Cocker Spaniels, mid-size mixes), 810-830 nm becomes the workhorse wavelength. For large and giant breeds (Golden Retrievers, Labradors, German Shepherds, Rottweilers, Mastiffs, Great Danes), 830-850 nm with adequate power output is essentially required for hip and deep spine applications.

Feline Wavelength Considerations

Cats are smaller than most therapy literature accounts for, and their anatomical depths are correspondingly shallower. Most feline applications fall within reach of 660 nm + 810 nm dual-wavelength devices, with rare cases needing the deeper 830-850 nm range.

Feline Application	Target Depth	Wavelength
Joint pain (hip, elbow, knee)	10-20 mm	660 + 810 nm dual
Spinal issues	10-20 mm	660 + 810 nm dual
Surface wounds and skin issues	2-6 mm	630-660 nm
Senior arthritis (multi-joint)	Variable, mostly 10-25 mm	810 nm primary

Cats also have particular sensitivity that affects therapy logistics: most cats tolerate 5-8 minute sessions much better than 15-20 minute sessions. Shorter, more frequent sessions (2-3 times daily for chronic issues) often work better in cats than the longer single sessions preferred by horse and dog owners. The total cumulative dose still reaches therapeutic levels; the delivery is just split across the day.

How Fur and Coat Affect Effective Dose

Treatment effectiveness depends on how much therapeutic energy actually reaches the target tissue, not how much energy the device emits. The single largest variable affecting this in animal therapy is fur—an issue largely absent from human red light therapy literature.

Coat Type	Effective Dose Reduction	Compensation
Short summer coat (clipped horse, smooth-coated dog)	0-10%	Standard session length
Medium coat (most adult dogs in shedding cycle)	10-20%	Add 2-3 minutes per session
Long coat (longhaired dogs, mid-winter horse coat)	20-30%	Add 4-5 minutes per session
Thick double coat (Husky, Bernese, Newfoundland, full winter horse)	30-40%	Add 5-7 minutes; consider parting fur
Dark coat (additional surface absorption)	+5% over light coat	Modest adjustment

For horses, the seasonal variation is significant: a horse you treat all winter through a thick coat may seem to "respond better" in spring after shedding, when the same therapy session delivers 30% more effective dose. This is often misinterpreted as the horse improving when actually the dose changed.

Practical adjustments: for thick-coated dogs in winter, parting the fur with your fingers as you apply the device reaches more effective dose. For horses with full winter coats, longer sessions (15-20 minutes vs the summer 12-15) compensate. For double-coated breeds like Huskies, treating during warmer months when the undercoat sheds may be more effective than mid-winter sessions.

The Three-Parameter Formula: Wavelength + Power + Time

Wavelength alone doesn't determine clinical outcome. The total therapeutic dose delivered to target tissue depends on three parameters working together.

Working a real example: treating a horse hock with a quality dual-wavelength wrap.

Device output: 75 mW/cm² at the surface (combined 660 nm + 850 nm)
Session length: 15 minutes (900 seconds)
Hock penetration factor at 850 nm: ~0.20 (20% of light reaches 22 mm depth)
Calculation: D = 75 × 900 × 0.001 × 0.20 = 13.5 J/cm² at target

This sits comfortably within the therapeutic threshold range (4-10 J/cm²) with margin to spare for variable factors like fur, distance, and individual tissue composition. A 15-minute session delivers reliable therapeutic dose.

Same calculation with a single-wavelength 660 nm device on the same hock:

Device output: 75 mW/cm² at the surface (660 nm only)
Session length: 15 minutes (900 seconds)
Hock penetration factor at 660 nm: ~0.02 (only 2% of light reaches 22 mm depth)
Calculation: D = 75 × 900 × 0.001 × 0.02 = 1.35 J/cm² at target

This falls well below therapeutic threshold despite identical power and time. The wavelength simply doesn't reach the depth—and no amount of session extension will fix that. Doubling the session to 30 minutes brings it to 2.7 J/cm², still subtherapeutic. This is why wavelength selection cannot be compensated for by longer sessions or more powerful red-only devices.

Quick Decision Reference: What Wavelength Do I Need?

Your Situation	Required Wavelength Configuration
Horse with hock arthritis (most common equine application)	Dual: 660 nm + 850 nm preferred
Horse with surface tendon issues (bowed tendon, suspensory)	Dual: 660 nm + 810 nm minimum
Horse hoof / coronary band care only	Red only acceptable: 630-660 nm
Horse full-back maintenance / general wellness	Dual: 660 nm + 850 nm strongly recommended
Horse hip / SI / deep gluteal issues	Dual with 850 nm + adequate power required
Large breed dog with hip arthritis (Lab, Golden, German Shepherd, Rottweiler)	Dual: 660 nm + 850 nm required
Large breed dog with elbow arthritis	Dual: 660 nm + 810 nm minimum
Medium breed dog with multi-joint senior arthritis	Dual: 660 nm + 810 nm
Small breed dog (under 25 lbs) general use	Dual: 660 nm + 810 nm covers most applications
Cat with arthritis or chronic pain	Dual: 660 nm + 810 nm sufficient
Surface skin / wound healing only (any species)	Red 630-660 nm acceptable
Complete versatility across multiple animals	Dual: 660 nm + 850 nm — covers everything

Power Density: The Specification Most Devices Hide

Wavelength is meaningless without adequate power density. Many devices market the "right wavelengths" while quietly delivering insufficient power to actually achieve therapeutic dose. The published power density (in mW/cm² at the treatment surface) is the specification that determines whether a device delivers real therapy or just glows red and feels warm.

Therapeutic power density benchmarks:

Below 20 mW/cm²: Unlikely to deliver therapeutic dose in reasonable session times. Common in cheap consumer devices.

30-50 mW/cm²: Adequate for surface applications and small targets in short sessions; insufficient for deep targets.

50-100 mW/cm²: Quality therapeutic range. Most professional veterinary devices fall here.

100-200 mW/cm²: Premium home devices and entry-level clinical devices.

Above 200 mW/cm²: Generally Class IIIb cold lasers and Class IV therapeutic lasers requiring trained operators.

For a complete therapeutic treatment, you want a device delivering at least 50 mW/cm² at the target wavelength, applied for sessions long enough to accumulate 4-10 J/cm² at the actual target depth. A device that publishes neither power density nor wavelength specifications is signaling that it doesn't want you to evaluate it on these terms.

The Common Misconceptions Worth Correcting

"More wavelengths = better" is a common marketing claim that's only partly true. Devices that include 5-7 different wavelengths (e.g., 415, 525, 630, 660, 810, 850, 940 nm simultaneously) often divide their LED budget across so many wavelengths that no single wavelength reaches adequate power density. Two well-implemented wavelengths (660 + 850) at high power generally outperform seven wavelengths at low power.

"Higher wavelength = better" isn't accurate either. Past 850 nm, water absorption in tissue starts increasing, and the additional depth available from 940 nm or 980 nm comes at the cost of meaningful additional energy loss. The 800-870 nm range is the practical sweet spot for veterinary applications.

"Pulsed light is better than continuous" is contested in research literature. Some studies show pulsed delivery offers benefits for specific applications (especially nerve regeneration); others show continuous delivery works equally well for most tissue applications. For ordinary musculoskeletal applications, continuous delivery is well-supported and simpler.

"Distance from skin matters more than wavelength" is technically true but practically misleading. Yes, increasing distance from skin reduces effective dose (inverse square law), which is why direct-contact wraps outperform held-at-distance panels. But this doesn't change which wavelength can reach which depth—it changes how much power is needed at the wavelength to deliver therapeutic dose.

Frequently Asked Questions

What is the best red light therapy wavelength for horses?

There is no single best wavelength for horses—different anatomical depths require different wavelengths. Red light at 630-660 nm is optimal for surface targets (skin, coronary band, surface wounds) where tissue depth is under 10 mm. Near-infrared at 810-850 nm is required for deep targets (hock joint at 20-25 mm depth, hip joint at 35-45 mm depth, deep muscle groups). Quality devices combine both wavelengths so a single session reaches both surface and deep tissue. Single-wavelength red devices cannot reach the deep joint capsules that most equine arthritis applications target.

How deep does red light therapy penetrate?

Penetration depth depends on wavelength. Red light at 630 nm reaches 4-6 mm into tissue; red light at 660 nm reaches 6-10 mm. Near-infrared at 810 nm reaches 25-35 mm; near-infrared at 850 nm reaches 30-45 mm with sufficient power. These figures assume direct skin contact in animals with short fur. Long winter coats reduce effective penetration by 20-40 percent.

Why doesn't 660nm work for hip arthritis?

660 nm red light penetrates only 6-10 mm into tissue, but the hip joint capsule in a large breed dog or horse sits at 30-45 mm depth depending on body composition. The light simply cannot reach the joint surface where the inflammation is. Owners using red-only devices on deep joints often see no improvement and incorrectly conclude the therapy doesn't work. The therapy works—the wavelength was wrong for the target.

Does long fur or winter coat affect effectiveness?

Yes, significantly. Long or thick fur (winter coat in horses, double-coat breeds in dogs) absorbs and scatters light before it reaches skin, reducing effective therapeutic dose by 20-40 percent. For horses with full winter coats, treatment time may need to increase by 25-50 percent to compensate. For thick-coated dogs (Huskies, Bernese Mountain Dogs, Newfoundlands), parting the fur during application improves results.

What wavelength should I use for a horse's hock?

Hock arthritis treatment requires 810-850 nm near-infrared light. The hock joint capsule sits at approximately 20-25 mm depth in an average-conditioned horse, beyond the reach of red light alone. Quality treatment devices for hocks should output 810-850 nm at adequate power density (50-100 mW/cm² at the surface, delivering approximately 4-10 J/cm² at the joint capsule over a 10-15 minute session).

How long should sessions be at different wavelengths?

Session length depends on the target depth, not the wavelength alone. Surface targets at 5-10 mm typically need 5-10 minutes. Mid-depth targets at 15-25 mm typically need 10-15 minutes. Deep targets at 30-45 mm typically need 15-20 minutes. The total energy delivered to target tissue should reach 4-10 J/cm² for therapeutic effect; longer sessions allow this dose to accumulate at deeper targets.

Can wavelength alone determine if a device works?

No. Wavelength determines what depth of tissue can be reached, but power density and session duration determine whether enough energy actually arrives at that tissue. The three parameters work together: wavelength sets the depth ceiling, power density sets the rate of delivery, and time sets the total dose. Quality manufacturers publish all three specifications transparently.

Should I buy a single-wavelength or dual-wavelength device?

For animal therapy applications, dual-wavelength (combining 630-660 nm red and 810-850 nm near-infrared) is essentially required for most veterinary applications. Animals being treated for joint arthritis, deep muscle issues, and hip dysplasia require near-infrared depth that single-wavelength red devices cannot deliver. Dual-wavelength provides much wider clinical application range and is the standard recommendation for owners of horses, dogs, and cats.

The Practical Conclusion

Wavelength selection for animal red light therapy isn't complicated once you understand the underlying physics: every body part has a depth, every wavelength has a penetration limit, and matching the two determines whether therapy works or wastes time. The single most important practical takeaway is that dual-wavelength devices combining 630-660 nm red and 810-850 nm near-infrared cover the vast majority of veterinary applications, while red-only devices are limited to the small subset of surface targets.

For owners weighing devices, the decision framework is simple: identify your primary treatment targets (hocks, hips, surface wounds, full back), check the depth chart in this guide, confirm the device offers wavelengths that can reach those depths, and verify the manufacturer publishes power density specifications transparently. Devices passing all three checks deliver real therapy. Devices failing any check—especially those that publish wavelength but hide power data—are likely to disappoint regardless of how compelling the marketing copy reads.
